SEM3000 Wattmeter Type and Detail

MyWatt 10ch. Wireless Electricity Monitor Model SEM3000 Series and Accessories. (WORLD BEST PRODUCT)

The end of 2014, we have developed 10ch. Wireless Smart Energy Meter SEM3000 Series IHD (In Home Display Unit) after 3 years R&D period. It was very difficult and hard working to our staffs.

We are really No, 1 developer in this field of IHD in the world. There are no maker who has similar function as we have.

We are the only one maker in the world who has 14ch. Wireless system with web cloud service and timer control function.

Our system has the following unique functions:
*10ch. Wireless system with 3-phase clamp type transmitter and plug-in type transmitter both. (only 1 maker in the world)

*CE (433MHz), TELEC (JAPAN: 429.2MHz), KC (424.7MHz) , FCC (433MHz) Certificate available. (only 1 maker in the world)

*Remote on-off control and timer control available IHD by Wireless Receiver or PC Software or Web Cloud Service and Smart Phone. (only 1 maker in the world)

*Automatic voltage calibration function is included for Clamp type wireless transmitter. – patent pending (only 1 maker in the world)

*World biggest 6” lcd display IHD. : 30 different function display LCD. (only 1 maker in the world)

*Monthly target and percentage (%) display function IHD. (only 1 maker in the world)

*Real-time energy consumption and money display for today, this week, this month and last 1 month (31 days) IHD. . (only 1 maker in the world)

*You can select average billing rate or 6-step tier rate and time-of-use billing rate at any time on IHD. . (only 1 maker in the world)

*You can select 6 country money symbol (Yen, Wien, Dollar, U.K. Pound, Euro, Korean Won) (only 1 maker in the world)

*You can use up to 3-phase, 500A current clamp for factory or building application (only 1 maker in the world)

*Web cloud service has real-time, total energy and money display for daily, weekly, monthly, yearly and 10 years graph and data download service and dash board display. (only 1 maker in the world)

*We could download 1 minute interval data for a day on web cloud service and 1 hour interval service for a month. (only 1 maker in the world)
　

*If you use MyWatt Cloud SEM3110 model and connect to Internet by LAN cable, the calendar & clock is calibrating automatically. (only 1 maker in the world)

*We have 2015 Weather Summit Award IHD. (only 1 maker in the world)

homepage: www.smartwattmeter.com product & price: www.smartwattmeter.com/index1.htm
web cloud service: http://www.smartwattmeter.com/cloud

MyWatt 10ch. Wireless Electricity Monitor System

MyWatt (SEM3010) 및 MyWatt Cloud (SEM3110) Common Function

*433MHz wireless electricity monitor. Maximum distance 50M at home. (Maximum distance 1000m at open sight.)
*Displays instantaneous power and 1 month estimated energy cost with that power.
*Displays today/this week/this month/31days total power usage and the cost.
*Provide monitoring of changing power gap when home appliances are turned on and off.
*Displays the percentage between this month target power vs. now.
*Displays today and this week graph.
*Displays 10 channel energy data by using 10 transmitters.
*Optical sensors can be supplied for the pulse output electricity totalizer (option)
*Supply 30A, 75A clamp for household and also supply 200A, 350A and 500A clamp for Industrial application. (option)
*Battery life of clamp type transmitter: CRT3000 (new) battery life is 10 months. If you add Extra D type battery pack, 15 months battery life is extended. Total battery life will be 2 years. : new long battery life type CRT3000 & SEM3110 receiver does not pair with old model.
*If you use power adapter, you do now need battery. (option)
*Using free PC software, you can see hour/day/week/month/year graph on PC.
*Display CO2 consumption by calculating the power usage
*Average energy cost setting, 2 to 6 step cost promotion setting is possible. Other ordered setting also possible.
*Calendar & Clock display
*Displays battery power on LCD
*Displays single or 3-phase clamp connection on LCD
*Displays RF433MHz power strength on LCD.
*4 Alarm display on LCD: BLACK OUT time display, peak energy over display, Daily and weekly energy target over display.
　

MyWatt Cloud (SEM3110) Extra Functions
　

*Shows up to 200kW instant electricity energy display on monitor.
*Connect to Internet by LAN cable connection
*Provide Max. 10Ch. Electricity and temperature graph on a web page.
*Provide Today/this week/this month/this year/10year graph.
*Provide the graph comparison for day/week/month/year)
*Provide Dash board. (today/yesterday, this week/last week, this month/last month, this year/last year)
*Provide data downloadable function for 1 month electricity with 1 hour interval)
*Provide the system location map
*Provide remote or on-off control of 10channel home appliances by using smart phone or website.
*Provide daily/weekly/monthly/yearly/10 year graph.
*Provide average energy cost setting and cost display of day/week/month/year.
*Provide free web cloud service for 2Ch. From 3ch. To 10 ch., yearly contract is necessary (option)
*Provide receiver clock automatic calibration when LAN or Wi-Fi line connection (In case of SEM3110AWIFI model).
*Email alarm when peak over power consumption (selection)
*Email service for day/week/month energy usage (selection)
*SMS service for the above alarm and energy usage (option)
*Max. 999ch. Site management (option)
*Consulting service for energy saving (option)

Korean Catalog English Catalog, Japanese Catalog

MyWatt 10ch. Wireless Electricity Receiver & Monitor

Model	Brand & Product	Supply	Clamp	Maximum wattage measurement	Price ($) List Price	Price ($) Limited Time Price
SEM3010AEU	MyWatt Home Energy Manager for Europe	75A clamp transmitter + Receiver	30A, 75A, 200A	200KW	110	94
SEM3110AEU	MyWatt Cloud Home Energy Manager for Europe	75A clamp transmitter + Receiver + 10year Internet Service (2ch.)	30A, 75A, 200A	200KW	150	128
SEM3110AEUWIFI	MyWatt Cloud Home Energy Manager for Europe : WI-FI	75A clamp transmitter + Receiver + 10year Internet Service (2ch.)	30A, 75A, 200A	Under Test (No Approval)	160	136

sem3010A2US	MyWatt Home Energy Manager for USA	2pc of 75A clamp transmitter + Receiver	30A, 75A, 200A	200KW	120	102
SEM3110A2US	MyWatt Cloud Home Energy Manager for USA	2pc of 75A clamp transmitter + Receiver + 10year Internet Service (2ch.)	30A, 75A, 200A	200kW	160	136
SEM3110A2USWIFI	MyWatt Cloud Home Energy Manager for USA: WI-FI	2pc of 75A clamp transmitter + Receiver + 10year Internet Service (2ch.)	30A, 75A, 200A	200KW under test		-
SEM3010B2US	MyWatt Home Energy Manager with PIT3100 for USA	2pc of 75A clamp transmitter + SEM3010 Receiver +PIT3100 transmitter	30A, 75A, 200A	200KW	160	136
SEM3110B2US	MyWatt Cloud Home Energy Manager with PIT3100 for USA	2pc of 75A clamp transmitter + sem3110 Receiver + 10year Internet Service (2ch.) +PIT3100 transmitter	30A, 75A, 200A	200KW	200	170
SEM3010EU	MyWatt Home Energy Receiver	Receiver	30A, 75A, 200A	200kw	70	60
SEM3110EU	MyWatt Cloud Home Energy Receiver	Receiver + 10year Internet Service (2ch.)	30A, 75A, 200A	200kw	110	94
SEM3210EU	MyWatt Industrial Receiver	Receiver	200A, 350A, 500A	500KW	90	77
SEM3310EU	MyWatt Cloud Industrial Energy Receiver	Receiver + 10year Internet Service (2ch.)	200A, 350A, 500A	500KW	130	111
SEM3510EU	MyWatt Cloud Industrial Energy Receiver	Receiver + 10year Internet Service (2ch.)	Optical Sensor	500kW	130	111
SFM3710	MyWatt Cloud Flow meter	Receiver + 10year Internet Service (2ch.	Optical Sensor	m3 Display	150	128
SEM1500AEUWIFI	1CH. MyWatt Cloud Tranceiver with WI-FI	no battery use. 220 V adapter apply	30A, 75A, 200A	200kW	90	77

MyWatt Clamp Type Wireless Transmitter

We use Clamp type wireless transmitter at the main control panel for to get the energy consumption with non-contact method and sent it to the receiver. 433MHz frequency.
For 3-phase system, we need 3pcs of clamp.

Model	Use	Supply	Price ($) List Price	Price ($) Limited Time Price

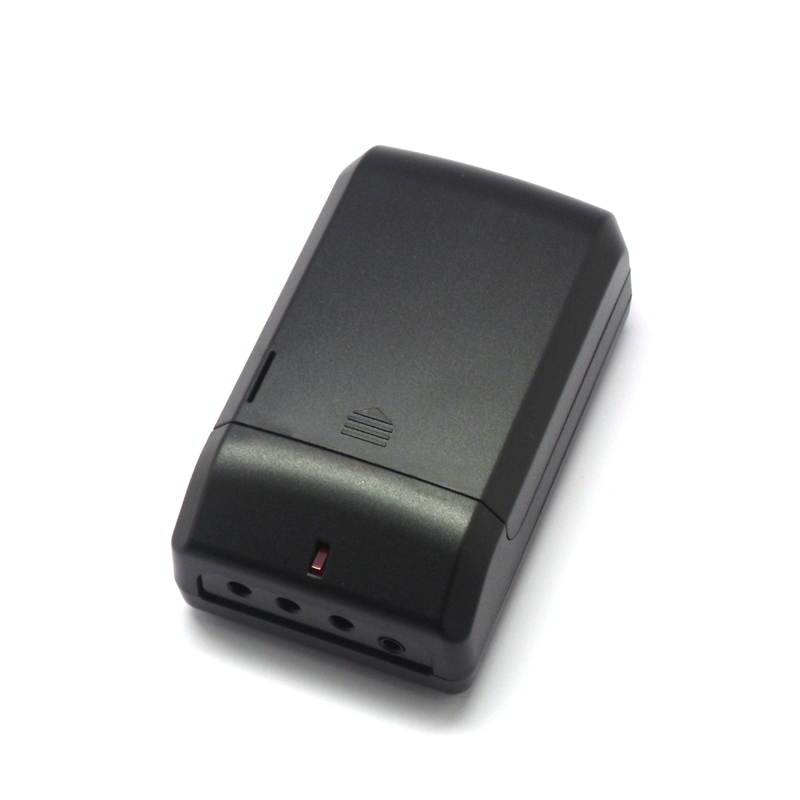

CRT3000	Wireless Transmitter (battery life: 10 month)		35	30
CRT3005	Wireless Transmitter (battery life: 10 month)	only for CLAMP500	50	43
CRT3006	Wireless Transmitter	only for Optical Sensor	50	43
CRT3100	Wireless Transmitter for Flow meter	only for 4-20mA input	50	43
CRT3101	Wireless Transmitter for Flow meter	only for Pulse input	50	43

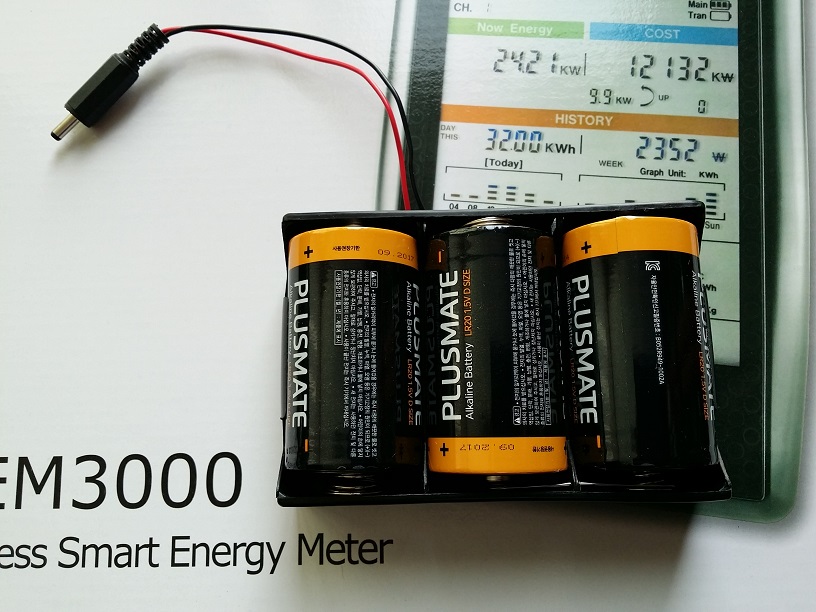

PPD1	Battery Pack for "D" type battery 3pcs	15 months extra dc power for CRT3000	10	9

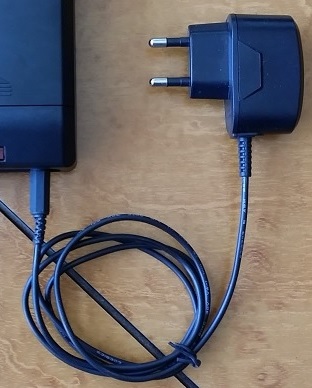

PAC1	Adapter for CRT3000	220V mains power for CRT3000	10	9

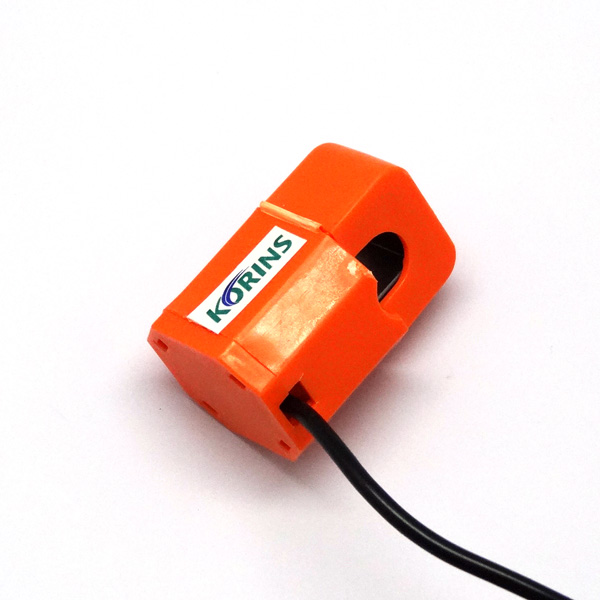

CLAMP30	Current Sensor (10mm inner dia.)	30A clamp	10	9

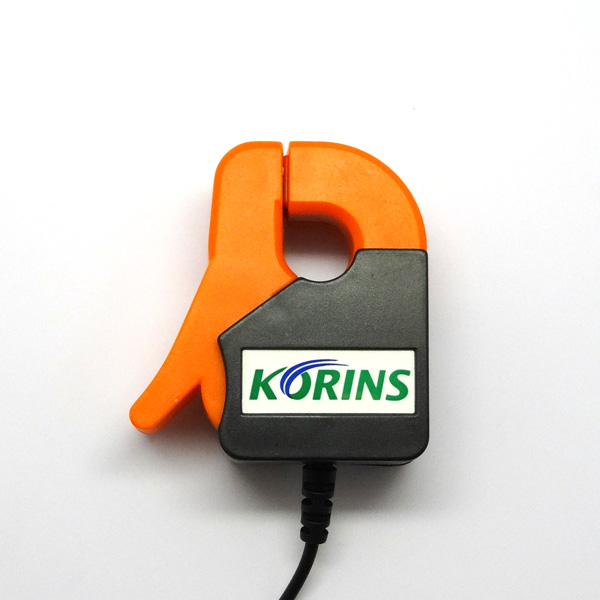

CLAMP75	Current Sensor 13mm inner dia.)	75A clamp	12	11

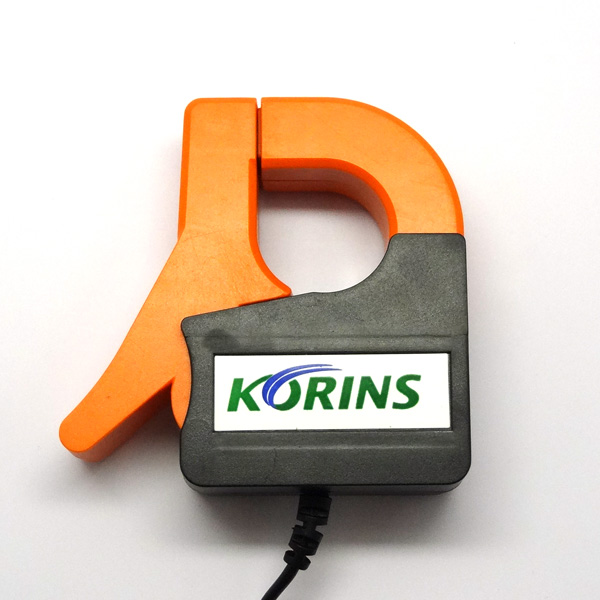

CLAMP200	Current Sensor (26mm inner dia.)	200A clamp	25	22

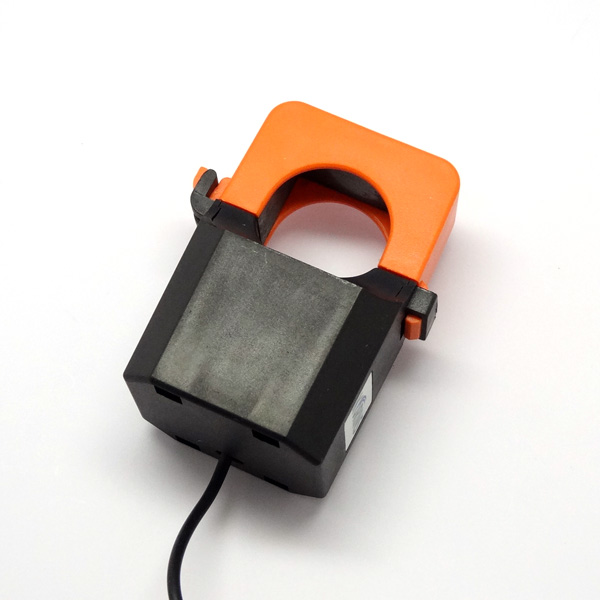

CLAMP350	Current Sensor(25mm inner dia.)	350A clamp	35	30
CLAMP500	Current Sensor (35mm inner dia.)	500A clamp	50	43
OPT100	Optical Sensor	only for CRT3006	20	20
OPT200	Optical Sensor	only for CRT3101	20	20

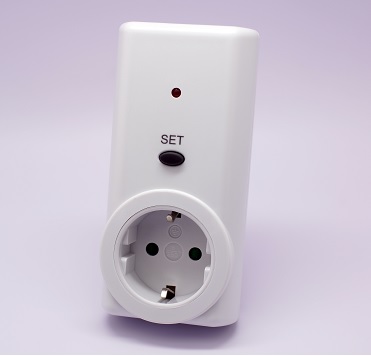

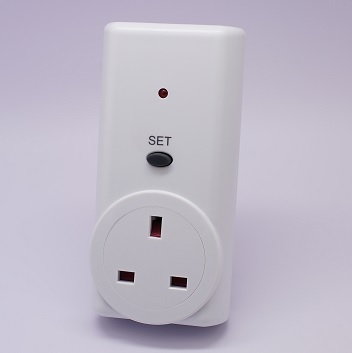

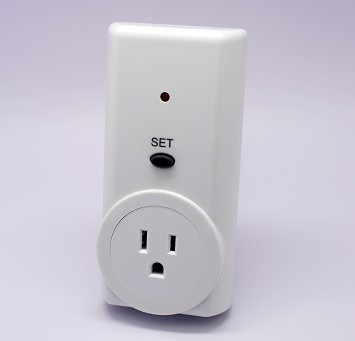

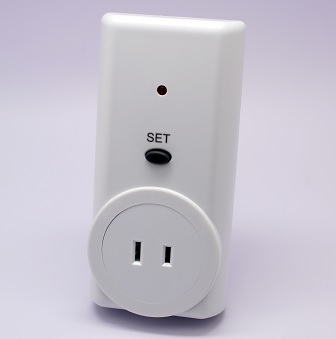

MyWatt Plug-in Type Wireless Transmitter (Option: on-off function)

Home Appliance normally use socket on the wall. The Plug-in type wireless transmitter is suitable for this purpose (433MHz).
Optional item: on-off function type with relay ( Other country type)
　

Model	Detail	Max. Ampere	Use	Price ($) List Price	Price ($) Limited Time Price
PIT3000	without control	15A	Home Appliance Energy Measurement	35	30
PIT3100	on-off function included	15A	Energy Measurement & Control	40	34

MyWatt Wireless Lamp Electricity Transmitter & Controller ( under development now)

Electric Lamp Energy Measurement & Control
　

Model	Detail	Use	Price ($) List Price	Price ($) Limited Time Price
LAT3000	without control	Lamp Energy Measurement	40	34
LAT3100	on-off control function	Lamp Energy Measurement & Control	50	43

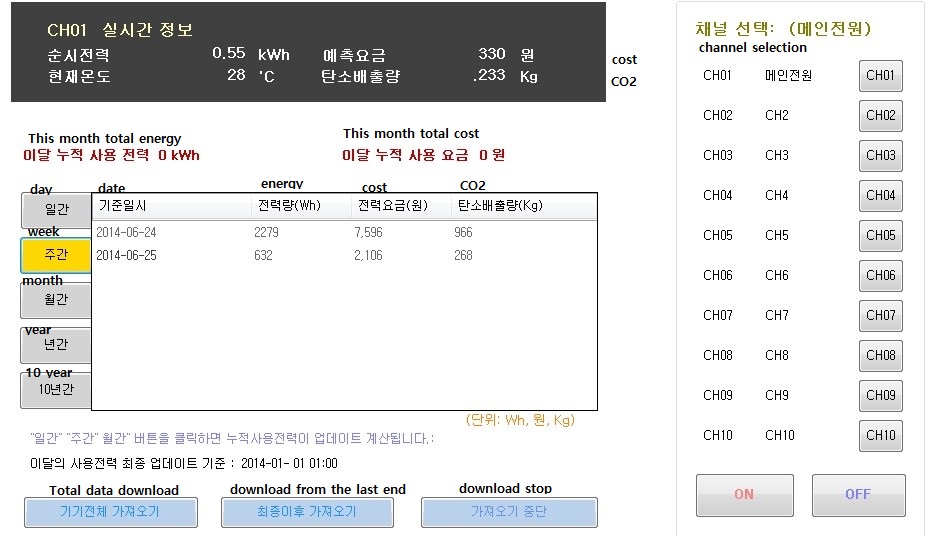

MyWatt PC Software (by using specially made cable)

You can set clock by PC software.
You can control the Home Appliance by PIT3100 transmitter with software.
You can download daily/weekly/monthly data by software.
You can see real time graph by software.
You can see daily/weekly/monthly graph by software.
　

Model	Detail	Use	Price ($)
SOFT3010	10CH. Graph Display	10ch, Graph Display and Receiver Setting	Free in 2015

MyWatt Web Cloud Service for 10 channel or over

We can see day/week/month graph by Internet or smart phone.
We can control home appliance by smart phone. We can send SMS message
We can send Email message of Energy Consumption

Model	Detail	Use	Price ($) List Price	Price ($) Limited Time Price
CLOUD-1	1CH -2CH Graph	Graph Measurement	free	free
CLOUD-3	3CH - 10CH Graph	Graph & Email service include	20/year	17/year
SMS-1		SMS service by smartphone	10/year	9/year
Email Service		day/week/month total data by email notice
